Saddle Bridge Nose Pads: How to Match a Replacement

Match a saddle bridge replacement by its mounting method, overall width, contour and variant code—not by color or softness alone.

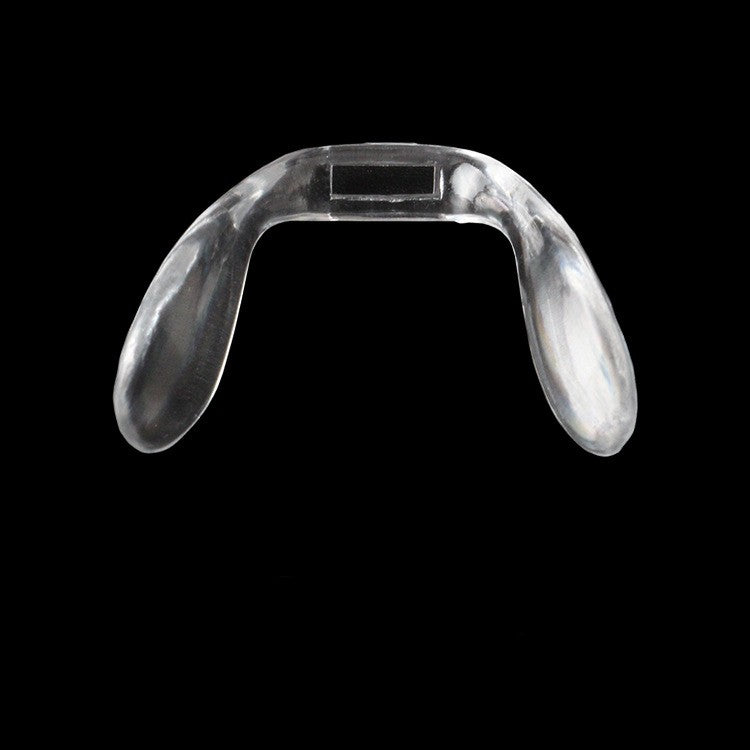

A saddle bridge is a one-piece contact component spanning the nose area. It is not interchangeable with two separate screw-in or push-in pads, and visually similar R-series parts may use different geometry.

For broader context, start with the Eyeglass Nose Pads Guide. The product link in this guide points to a current EBJDE Online Store destination, not a generic or archived listing.

Confirm That the Original Is Replaceable

First distinguish a removable saddle or strap-style part from a bridge molded into the frame. Look for a defined mounting point or removable component rather than prying at integrated frame material.

• Photograph the original from front, side and underside.
• Note any visible variant code or frame-part reference.
• Check whether the bridge uses screws, a push fitting or another dedicated mount.

Measure the Shape and Mounting Points

Measure the original part in millimeters while it is relaxed. Overall width alone is insufficient; the center contour, wing length and mounting location determine whether the part seats correctly.

1. Measure total width at the widest points.
2. Compare the center arch height and thickness.
3. Match mounting holes, stems or tabs exactly.
4. Compare the product’s variant images to the original part.

Dry-Fit Before Final Installation

Place the replacement near the frame without forcing it. The bridge should align naturally with the mounting hardware and sit symmetrically.

• Do not stretch a smaller part to reach the mount.
• Do not enlarge holes or trim structural areas.
• Tighten compatible screws only until secure; tiny hardware is easy to strip.

Common Mistakes and Stop Conditions

Ordering by a generic name, assuming all R-series codes are equivalent, or forcing a bridge to conform can damage the part, hardware or frame.

• Stop if the mount does not line up without tension.
• Stop if the frame is cracked or the mounting hardware is corroded.
• Ask an optician to install the part when the bridge attaches near a fragile or rimless lens assembly.

Frequently Asked Questions

Are saddle bridge pads universal?

No. Overall shape, size and mounting details vary, even when two parts look similar.

Can I replace a saddle bridge with two separate pads?

Only if the frame was engineered for that system. A saddle-bridge mount and two-pad arms are normally different structures.

What should I do with an unknown R code?

Use the original part and frame as the reference, then compare exact product images and measurements; do not guess from the letter-number label alone.

Choose the Right EBJDE Option

After confirming the original mounting system and dimensions, compare the silicone saddle bridge nose pads. You can also compare the closely related saddle bridge versus individual pads comparison before deciding.
