Eyeglass Screw Size Guide: How to Match Replacements

There is no single universal eyeglass screw size. A safe match must suit the screw's location, head shape, shaft diameter, thread or pitch, and usable length. Compare an intact original screw whenever possible. The correct replacement should enter by hand for the first turns; if it binds, stop instead of forcing it.

Where eyeglass screws are used

Common locations include temple hinges, eyewire closures on full-rim frames, nose-pad mounts and some rimless assemblies. Screws from different locations may look similar but serve different mechanical purposes. Rimless hardware can also include nuts, sleeves, bushings or plugs rather than a simple hinge screw.

The five details that determine a match

1. Repair location

A hinge screw, eyewire screw and nose-pad screw are not interchangeable merely because their heads look alike.

2. Head and drive

Match the head profile and the slot or drive. A driver that is too small can damage the slot; one that is too large may not seat fully.

3. Shaft diameter

The threaded shaft must fit the receiving part. A thicker screw can damage threads, while a thinner one may wobble or fail to hold.

4. Thread and pitch

Screws with similar diameters can use different thread spacing. The replacement should begin smoothly without cross-threading.

5. Usable length

Length must engage enough thread without protruding into a lens, skin-contact area or moving hinge. Head style changes where length should be measured, so compare like with like.

How to identify a replacement screw

1. Photograph the location. Record how the hinge, rim or pad mount is assembled.
2. Save the original. Work over a light-colored towel or parts tray.
3. Compare head and drive. Select a driver that fills the slot cleanly.
4. Measure carefully. Use fine calipers if available, but treat measurements as comparison data rather than a reason to force a part.
5. Compare thread engagement. Use an intact matching screw from the opposite temple only as a visual reference; do not leave both sides disassembled.
6. Test without force. The first turns should be smooth. Back out immediately if the screw tilts or binds.
7. Check movement and clearance. The hinge should move normally and no screw tip should contact the lens or wearer.

When the old screw is missing

Start with the frame brand, model markings and the exact repair location, then compare a graduated repair assortment. Do not assume the opposite hinge uses an identical screw on every frame. If several candidates seem close, an optical shop can gauge the threads and inspect the barrel more reliably.

Do not substitute a longer screw casually

A long screw may appear to hold, yet protrude toward the lens or skin. Trimming can leave sharp edges, transfer force into a drilled lens or damage threads. Use purpose-made compatible hardware; leave drilled rimless lenses and screw cutting to trained hands.

Common mistakes

• Buying by head appearance without checking the thread
• Forcing a screw that does not start smoothly
• Using the wrong driver and stripping the slot
• Overtightening until the hinge binds
• Adding household glue to a screw or thread
• Assuming a screw will repair a cracked barrel or broken solder joint

When to stop and visit an optician

Get help if the screw spins without tightening, the hinge barrels do not align, threads are damaged, a spring hinge has retracted, the eyewire will not close naturally, or hardware sits next to a chipped or drilled lens. A new screw cannot restore damaged receiving threads or a broken frame joint.

Frequently asked questions

Are all eyeglass hinge screws the same size?

No. Diameter, thread, length, head and drive can vary by frame and hinge.

Can I use a screw from a repair kit?

Yes only after confirming that it matches the receiving threads and has safe length and clearance.

How tight should it be?

Secure enough that the joint works as designed, not so tight that the hinge binds or the head strips. See how to tighten glasses screws safely.

Shop repair tools

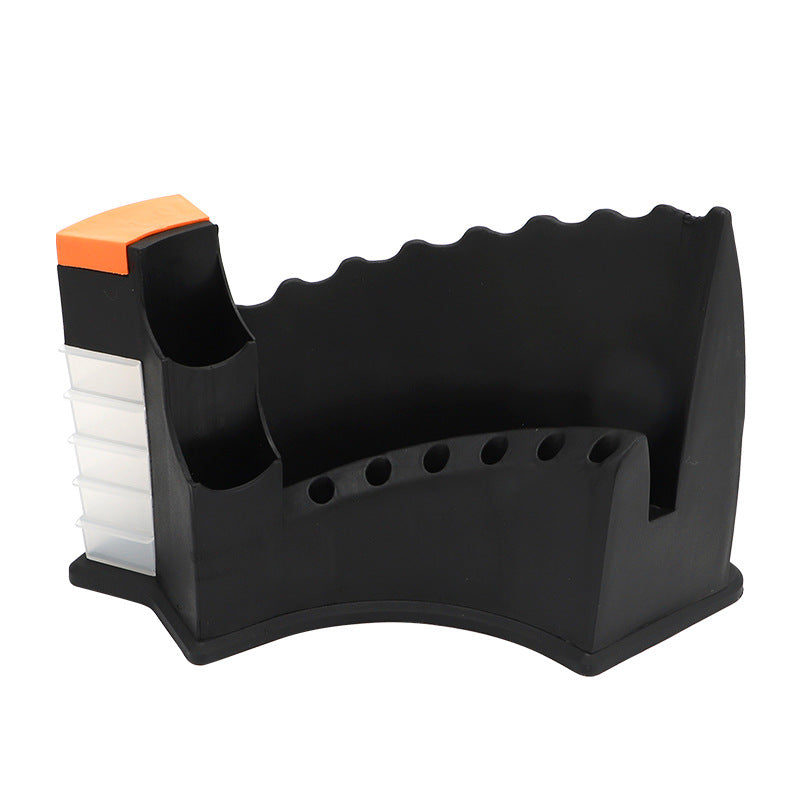

Compare precision drivers and compatible repair supplies in EBJDE Eyeglass Repair Tools. For a broader setup, read Essential Eyeglass Repair Tools for Home Repairs.
